A extensive teardown of the newly released iPhone air has provided a detailed glimpse into Apple’s engineering prowess, showcasing a series of well-considered compromises to achieve an exceptionally thin profile. The device, measuring just 5.6 millimeters in thickness, represents a notable achievement in smartphone design.
Innovative Internal Architecture
Table of Contents
- 1. Innovative Internal Architecture
- 2. Battery and Connectivity Insights
- 3. Enhanced Repairability
- 4. A19 Pro Chip and 5G Modem
- 5. Structural reinforcement and Design Philosophy
- 6. Understanding Smartphone Repairability
- 7. What specific design optimizations allowed Apple to achieve the 5.6mm thickness of the iPhone Air while maintaining functionality?
- 8. Analyzing iPhone Air: How apple Achieves a Slim 5.6mm Design without Compromising Repairability, According to iFixit Dismantling Insights
- 9. The challenge of Thin: Balancing Form and Function
- 10. Key Design Innovations for Slimness
- 11. iFixit’s Teardown: A Repairability Perspective
- 12. repairability Score & Key Observations
- 13. component Deep Dive: What’s Inside the iPhone Air?
To attain this remarkable thinness without sacrificing structural integrity, Apple fundamentally re-engineered the iPhone’s internal layout. A central element of this redesign is the “plateau” camera system – a purposeful, non-aesthetic protrusion that serves as a housing for critical components, including a portion of the Logic Board. This strategic placement frees up valuable space for a larger battery and distributes mechanical stress more efficiently,bolstering the device’s resistance to bending and twisting.
Rigorous testing confirms the effectiveness of this design. When the frame was subjected to stress tests without internal components, areas around the antenna gaps revealed points of weakness. Though, with the battery, circuit board, and shielding in place, the iPhone Air demonstrates a significantly improved level of robustness.
Battery and Connectivity Insights
The iPhone Air employs a 12.26Wh battery, mirroring the capacity, shape, and thickness of the cell found in the latest Magsafe Battery Pack. Notably, this battery is directly compatible with, and functions within, the iPhone Air. However, Wireless charging efficiency subtly reduces the overall power transfer due to energy loss during conversion and dissipation.
Apple also prioritized modularity in the iPhone Air’s design. The USB-C port incorporates a 3D-printed titanium alloy door, engineered for structural resilience, though it’s finish is more prone to scratching than the primary frame. Crucially,this port is designed to be removed and replaced independently,simplifying repairs and reducing the need for extensive disassembly.
Enhanced Repairability

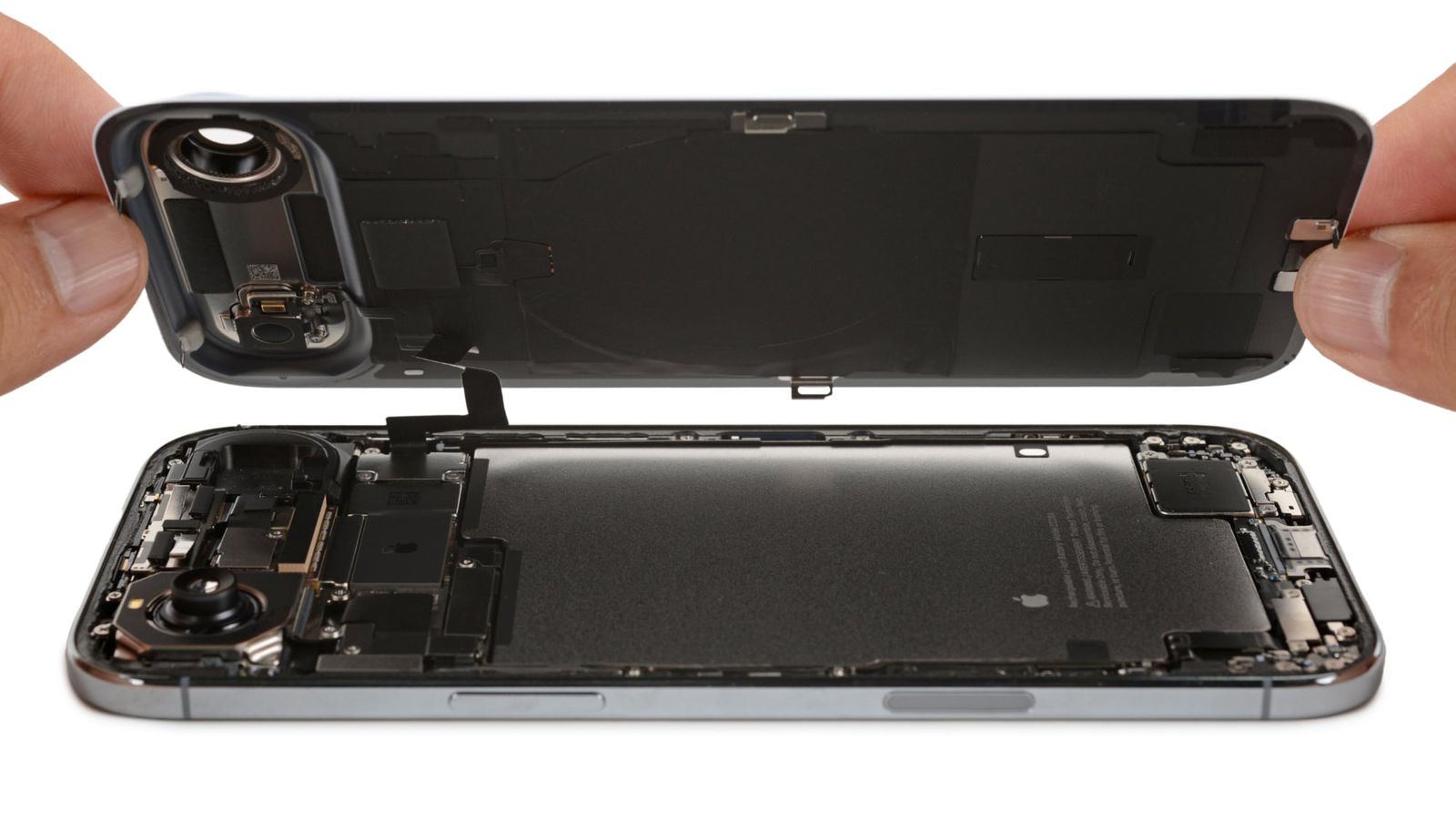

Surprisingly, the iPhone Air boasts a high degree of reparability, defying expectations for such a slim device. apple opted for a clipped, more accessible Back Glass and employed a low-voltage adhesive on the battery, minimizing the risk of damage during removal. These design choices have earned the iPhone Air a temporary repairability score of 7/10 from iFixit, alongside easier-to-access manuals, readily available official spare parts, and reduced software restrictions on component pairing.
A19 Pro Chip and 5G Modem
The Logic Board features the advanced A19 Pro chip, the N1 network chip, and, for the first time in an iPhone, a fully Apple-designed 5G C1X modem. This integration of proprietary chips significantly enhances performance and efficiency.
Structural reinforcement and Design Philosophy
The elevated “plateau” housing the logic Board isn’t merely an aesthetic feature; it provides critical structural support, protecting against flexing forces. This design element, combined with the titanium frame, exemplifies Apple’s approach to solid-state engineering – maximizing functionality within tight physical constraints.
The iPhone Air isn’t just the thinnest iPhone to date; it represents a holistic design philosophy that seamlessly blends compactness, durability, and usability.
Understanding Smartphone Repairability
The Right to Repair movement has gained significant momentum in recent years, advocating for easier access to parts, tools, and information for repairing electronic devices. iFixit is a leading voice in this movement, providing repair guides and selling replacement parts. Apple’s recent improvements in repairability, as seen in the iPhone Air, align with this growing demand for lasting electronics.
did You Know? The European Union has implemented legislation requiring manufacturers to make smartphones easier to repair, further pushing the industry towards greater sustainability.
Pro Tip: Before attempting any smartphone repair yourself, always consult a reliable repair guide and take appropriate safety precautions, such as disconnecting the battery.
