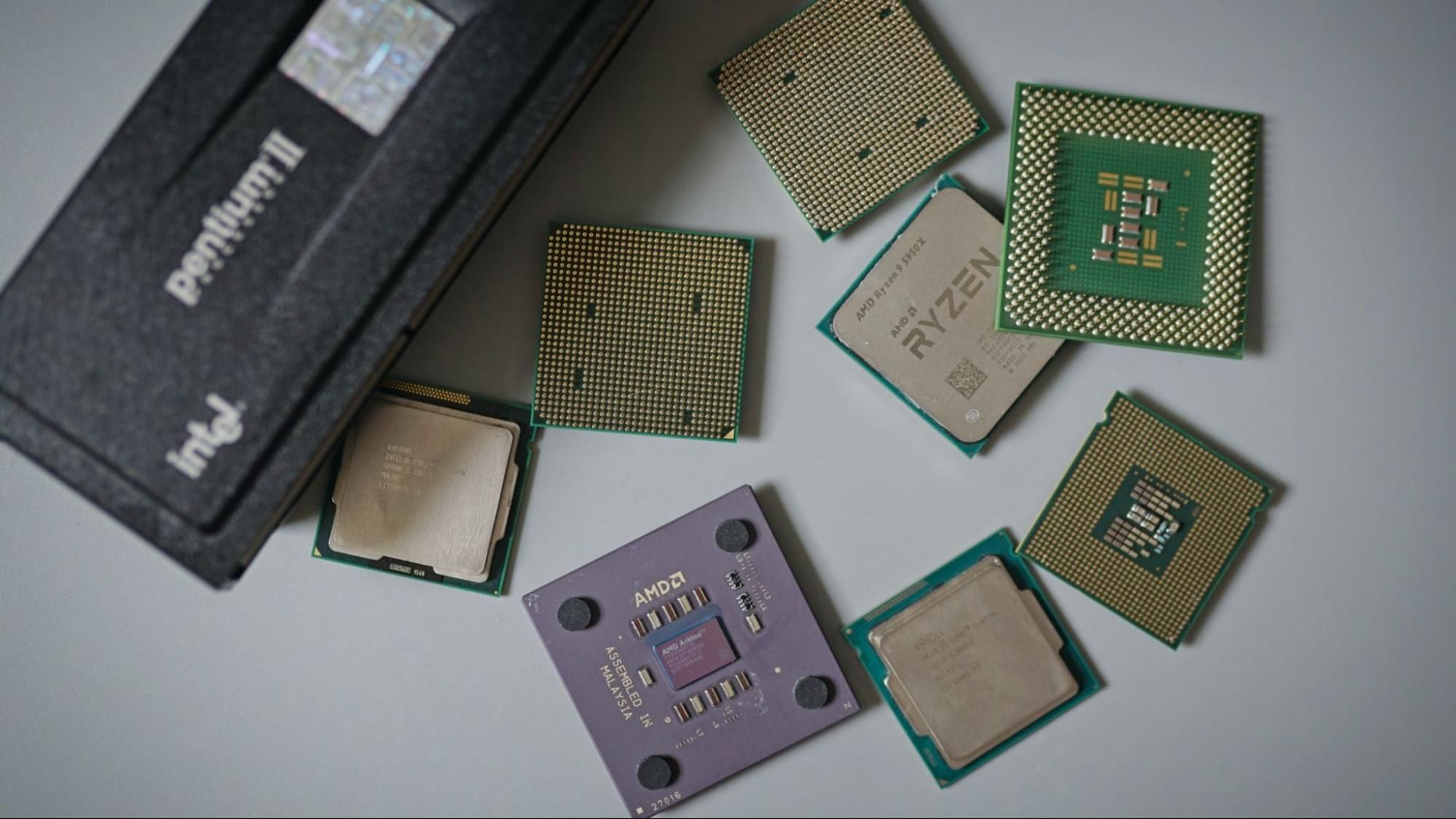

Marking three decades of processor evaluation, Tom’s Hardware’s 30-year CPU retrospective traces the volatile silicon wars from the 1997 Pentium II ‘Klamath’ launch to today’s dual 3D V-Cache architectures, chronicling how fierce clock-speed races, architectural misfires like Intel’s NetBurst and AMD’s Bulldozer, and modern multi-chip packaging fundamentally reshaped desktop computing.
The Rogue Review That Built an Empire of Benchmarks
Founded organically in 1996 by Thomas Pabst via early web directories and BIOS tuning guides, the site rocketed to global prominence in March 1997 with a brutally honest evaluation of Intel’s unreleased Pentium II ‘Klamath’ processor. Working with engineering samples sourced from German publications C’T Magazin fur Computertechnik and PC Professionell, Pabst didn’t mince words, writing that he wouldn’t risk infecting his computer with the chip any more than he would eat Mad Cow Disease-infected beef.
The fallout was swift. Intel threatened legal action and advertising boycotts against the European magazines, but Pabst publicized the heavy-handed corporate retaliation. The ensuing PR disaster caught the attention of The New York Times, forcing Intel to back down and instantly cementing the site’s reputation as an uncompromised enthusiast sanctuary. In a twist of corporate irony, AMD stepped in to offer review hardware and legal backing if Intel pressed forward, establishing a David-versus-Goliath dynamic that Pabst humorously tracked by referring to Intel as the “Empire” and its competitors as “Rebels.”
That foundational friction paved the way for a relentless march through architectural milestones. The industry quickly transitioned from single-core bottlenecks to aggressive frequency scaling, chasing the elusive one-gigahertz barrier in early 2000. While AMD narrowly claimed the crown with the Athlon 1000, Intel’s disastrous rush to ship a 1.13 GHz Pentium III just months later resulted in a humiliating product recall after stability failures exposed the absolute limits of 180nm nodes.
When Megahertz Mania Collided with Thermal Realities
By the mid-2000s, the unbridled obsession with raw clock speeds hit a brick wall. Intel’s NetBurst microarchitecture, introduced with the Willamette-cored Pentium 4, pushed frequencies past the 3 GHz threshold but suffered from severe thermal degradation and instruction-pipeline inefficiencies. Intel attempted to claw back efficiency through pioneering simultaneous multithreading with Hyper-Threading on the Pentium 4 3.06 GHz, yet peak power draws climbed to unsustainable levels.
AMD capitalized on this vulnerability with the legendary Athlon 64 and its implementation of the x86-64 instruction set extension, proving that instructions-per-clock (IPC) efficiency mattered far more than raw gigahertz metrics.
The Architectural Renaissance of Zen and 3D Packaging
Three Decades of CPU Evolution at a Glance
- 1997: Pentium II Klamath introduces 7.5 million transistors on a 350nm node at ~300 MHz.
- 2000: Athlon 1000 shatters the 1-gigahertz barrier on an 180nm node.
Navigating the Post-Moore’s Law Landscape
Today, the semiconductor industry navigates an entirely different economic and technical reality.
Through three decades of benchmark hierarchies, architectural revolutions, and corporate proxy wars, the fundamental push for compute efficiency remains entirely unyielding.
