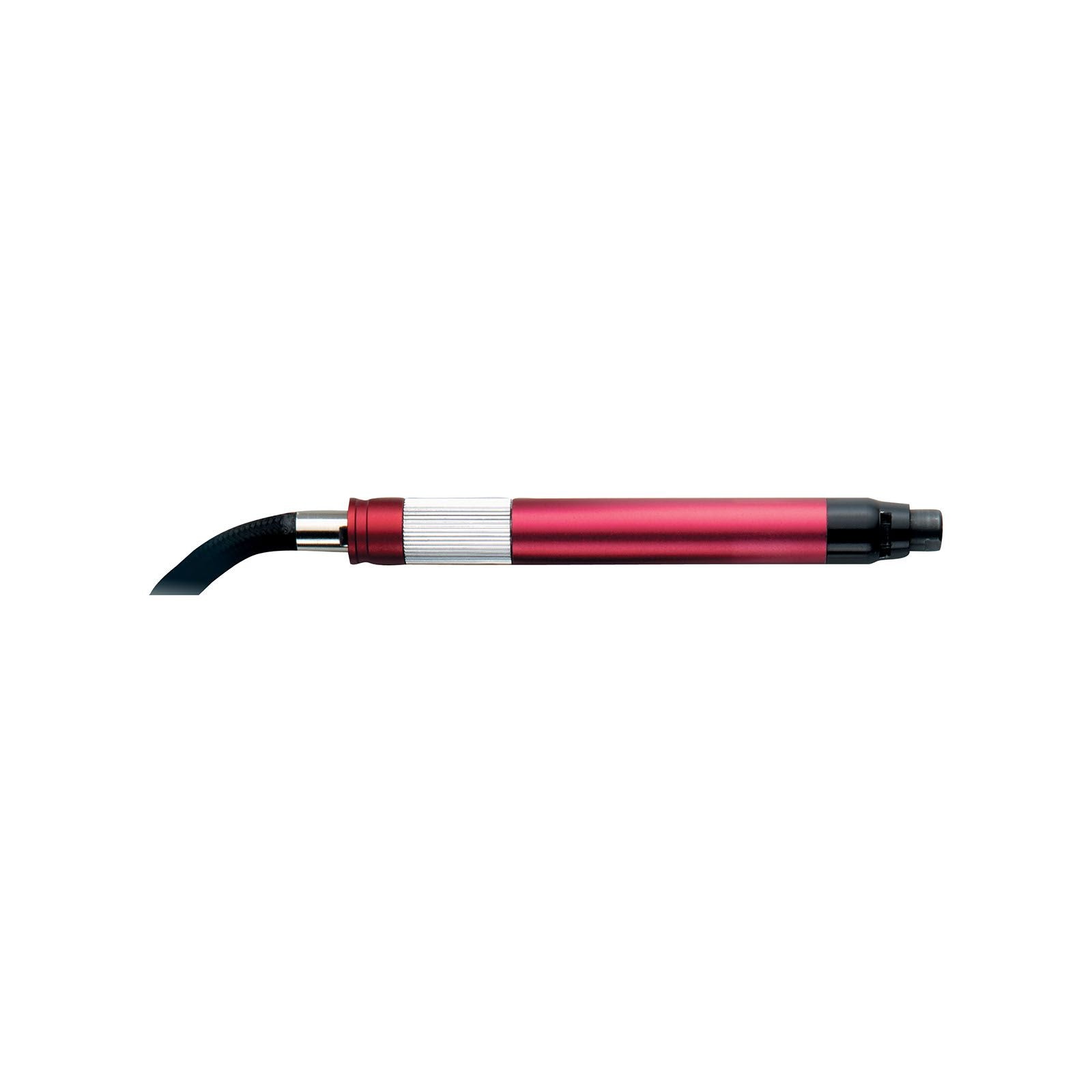

Chicago Pneumatic 1/8″ Pencil Die Grinder

Compact Pencil Die Grinder Revolutionizes Precision Work

A New compact pencil die grinder is set to redefine precision work across various industries. Its innovative design promises to enhance accessibility and maintain the highest quality standards, even in the most confined spaces. This tool is engineered for professionals who demand accuracy and comfort in their grinding applications.

Unleashing Precision: The Compact Pencil Die Grinder

The pencil die grinder’s standout feature is its remarkable speed of 60,000 rpm. Precision becomes a key factor in grinding applications requiring such high speed. Weighing just 1.01 lbs (0.2 kg), this tool maximizes user comfort, reducing fatigue during prolonged use.

Available as a bare tool or in a extensive kit, it caters to diverse user needs. The ergonomic design and enhanced features make it a must-have for professionals seeking top-tier performance.

Key Benefits of the new Die Grinder

• Reduced Noise: Operates at a very low noise level, ensuring greater user comfort.
• Enhanced Accuracy: High free speed enables precise and accurate grinding.
• Silencer Hose: Includes a silencer hose for quieter operation.
• Versatile Collets: Comes with both 3 mm and 1/8″ collets for different accessories.
• Lightweight Design: Ensures excellent maneuverability and reduces user fatigue.

Technical specifications

Here’s a quick look at the specifications that make this tool stand out:

Specification	Details
Starting System	Rolling Throttle
Collet Max Capacity	1/8 in
Angle Type	Straight
Air Inlet Thread Size	1/4 in
Main Material Type	Aluminum
Exhaust	Rear
Abrasive Type	Carbide burr
Weight	1.01 lbs
Country of Origin	Taiwan, Province of china

Enhanced Comfort and Control

The lightweight construction is just one aspect of user comfort.The very low noise level considerably reduces operator fatigue, making it suitable for extended use in various applications. Did You Know? Prolonged exposure to loud noise can lead to hearing damage; this tool prioritizes user safety and comfort.

Precision Grinding: A Game Changer

With its high free speed, the pencil die grinder ensures greater accuracy in grinding applications. The inclusion of both 3 mm and 1/8″ collets provides versatility, allowing users to adapt to different tasks with ease. Pro Tip: Regularly inspect and clean the collets to maintain optimal performance and prolong the tool’s lifespan.

Evergreen Insights: Mastering Precision Grinding

Precision grinding is essential in fields like dentistry, jewelry making, mold making and aerospace engineering. Selecting the right tool, like this rotary tool is crucial, but technique is equally crucial.

• Choose the Right Burr: Carbide burrs are ideal for hard materials.
• Maintain Consistent Pressure: Avoid excessive force to prevent tool damage.
• Control the Speed: Adjust the speed according to the material and application.
• Use Proper Safety Gear: Always wear eye protection and respiratory mask.

Frequently Asked Questions

What is a pencil die grinder used for?

A pencil die grinder is used for precision grinding, deburring, polishing, and shaping materials, especially in tight or hard-to-reach areas.

What are the benefits of using a compact die grinder?

Compact die grinders offer enhanced maneuverability, accuracy, and comfort, particularly in intricate applications. Their small size allows access to constrained spaces.

What is the maximum speed of this pencil die grinder?

This pencil die grinder boasts a high speed of 60,000 rpm, ideal for precision grinding tasks.

What type of abrasive can be used with this tool?

This die grinder is designed for use with carbide burrs, known for their durability and effectiveness in material removal.

what is the weight of this pencil die grinder?

The pencil die grinder weighs only 1.01 lbs (0.2 kg), providing a high level of user comfort and reducing fatigue during extended use.

What collet sizes are included with this pencil die grinder?

The pencil die grinder includes both 3 mm and 1/8″ collets, offering versatility for different grinding accessories.

What are your thoughts on this new precision tool? Share your comments below!

What are the common pitfalls to watch out for when selecting a Chicago Pneumatic 1/8″ pencil die grinder, considering factors like RPM, air compressor compatibility, and included accessories?

Chicago Pneumatic 1/8″ Pencil Die Grinder: ultimate Guide

The Chicago Pneumatic 1/8″ Pencil Die Grinder is a compact, powerful tool ideal for detailed grinding, deburring, and polishing. Known for its precision and control, this air-powered grinder is a favorite among mechanics, metalworkers, and hobbyists. This in-depth guide will explore everything you need to know about this essential tool, from its features to practical applications.

Key Features and Specifications

Understanding the specifications of the Chicago Pneumatic pencil die grinder is crucial for making an informed purchase. Here’s a breakdown of the key features:

Design and Construction

The 1/8″ pencil die grinder is recognized for its ergonomic design, ensuring pleasant handling during prolonged use. It is also known for durable construction, typically crafted from high-quality materials to withstand the rigors of daily use.

• Compact Size: Allows for access in tight spaces.
• Ergonomic Grip: Provides comfort and control.
• Durable Construction: Built to last in harsh environments.

Performance Specifications

Performance metrics dictate the tool’s functionality. Key specs include:

Specification	Details
Collet Size	1/8″ (3.175 mm)
Free Speed	28,000 – 50,000 RPM (varies by model)
Air consumption	~4 CFM
Air Inlet Size	1/4″ NPT

Applications of the Chicago Pneumatic Pencil Die Grinder

The versatility of the Chicago Pneumatic 1/8″ pencil die grinder makes it suitable for a wide range of applications:

Metalworking

In metal fabrication, this grinder excels at:

• Deburring: Removing sharp edges and burrs from cut metal parts.
• Grinding: Smoothing welds and preparing surfaces for finishing.
• Polishing: Achieve a high-gloss finish on metal surfaces.

Automotive Repair

In the automotive sector, the grinder is utilized for:

• Porting and polishing: Improving engine performance by optimizing airflow.
• Removing Rust: Cleaning and restoring metal components.
• Valve Work: Precision grinding and shaping of valve seats.

Hobby and DIY Projects

Ideal for DIY projects and hobbies, the grinder tackles tasks such as:

• Jewelry Making: Detailed work on small components
• Woodworking: fine shaping and carving.
• Model Building: Trimming and shaping small parts.

Benefits of Using a Chicago Pneumatic Pencil Die Grinder

Using a Chicago Pneumatic 1/8″ pencil die grinder offers significant advantages:

• Precision: The small size and high-speed rotation provide superior control for detailed work.
• Durability: Built to last, the grinder withstands demanding workshop conditions, thus reducing long-term expenses
• Versatility: Usable with various grinding points, burrs, and polishing accessories for a wide range of applications.
• ergonomics: Designed with user comfort in mind, reducing fatigue during extended use.

Purchasing and Maintenance Tips

Considering these tips aids in a smart purchase and ensures the tool’s longevity.

Selecting the Right Model

Consider the following when choosing a model:

• RPM: Higher RPM is suitable for harder materials
• Airflow: Ensure your air compressor meets the grinder’s CFM requirements.
• Accessories: Some models come with a complete set of accessories, which increase value.

Maintenance and Care

Regular maintenance ensures the tool’s performance and life span. Consider these maintenance practices:

• Lubrication: lubricate the air tool regularly to maintain peak function
• Air filter: Install an in-line air filter to prevent contaminants from entering the tool.
• Inspection: Inspect the tool for damage regularly.

By adhering to these principles, you can maximize the effectiveness and longevity of your Chicago Pneumatic 1/8″ pencil die grinder.
