A technical report published in Cureus details the successful execution of a balloon-assisted Squid 12 embolization procedure for a complex renal angiomyolipoma featuring imaging findings indicative of an arteriovenous communication. This advanced intervention highlights evolving endovascular strategies for managing high-risk vascular renal anomalies in clinical practice.
The Bottom Line
- Advanced endovascular tools like Squid 12 liquid embolic agents are increasingly utilized for complex renal lesions with high vascular shunting.
- Balloon-assisted occlusion provides critical flow control during liquid embolization, mitigating risks of non-target migration in lesions with arteriovenous communications.
- Detailed technical documentation in peer-reviewed literature helps establish standardized protocols for managing high-flow renal angiomyolipomas.
Navigating Complex Renal Embolization Mechanics
Renal angiomyolipomas represent benign mesenchymal neoplasms composed of varying proportions of blood vessels, smooth muscle, and adipose tissue. While typically benign, larger lesions or those possessing abnormal vascular architecture—such as arteriovenous communications—carry a significant hemorrhage risk. According to the Cureus technical report, standard coil embolization occasionally proves insufficient when high-flow shunts are present, necessitating liquid embolic systems designed to penetrate nidus vasculature effectively.
The implementation of Squid 12, a low-viscosity non-adhesive liquid embolic agent, allows for deep penetration into complex microvascular networks. However, managing such agents in the presence of arteriovenous shunting demands rigorous proximal flow control to prevent nontarget embolization into the systemic circulation. The report outlines how temporary balloon occlusion successfully altered local hemodynamics, creating a stable environment for controlled polymer deposition.
Evaluating Endovascular Device Efficacy
| Parameter | Traditional Approach | Balloon-Assisted Squid 12 Technique |
|---|---|---|
| Primary Agent | PVA particles / Microcoils | Low-viscosity liquid embolic (Squid 12) |
| Flow Control | Passive redirection | Active temporary balloon occlusion |
| Shunt Management | High risk of distal migration | Controlled polymerization via flow arrest |

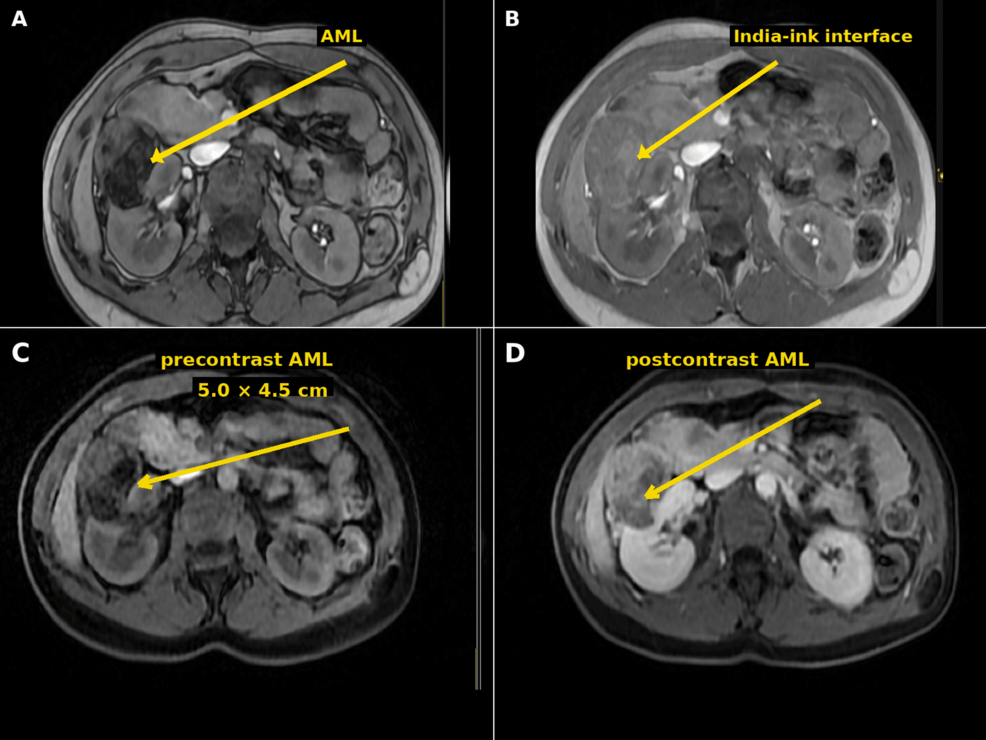

Here is the math: liquid embolic agents offer superior parenchymal penetration compared to mechanical coils alone, yet they introduce considerable procedural variables. When an arteriovenous communication is identified via pre-procedural imaging, the pressure gradient can rapidly sweep liquid polymers downstream before complete polymerization occurs. Deploying a compliant balloon catheter upstream alters this gradient, affording the interventional radiology team precise control over the working zone.
Clinical Takeaways and Future Trajectory
As endovascular technology matures, procedural documentation of technical nuances remains essential for guiding specialized interventions. The successful management of this renal angiomyolipoma reinforces the utility of combined balloon occlusion and liquid embolization in anatomically challenging cases. Clinicians and specialists continue to refine these workflows to optimize patient outcomes while minimizing procedural morbidity.
