Researchers at the National University of Singapore have developed a fiber that functions as pixels and senses touch simultaneously, integrating 54 of these strands into a sleeve to create the world’s first touchscreen built into a garment, futurity.org reported.
The innovation allows ordinary garments to display images and videos, respond to finger presses, and connect wirelessly to external devices without relying on rigid screens.
In Plain English: The Clinical Takeaway
- Continuous Health Monitoring: Textile sensors embedded in garments can track physiological metrics like body temperature and movement patterns directly against the skin without rigid hardware.
- Direct Digital Interfacing: The woven display enables wearers to view and interact with their real-time health data straight from their clothing.
- Durability and Safety: The fabric maintains full breathability and withstands standard washing machine cycles, keeping it practical for everyday use.
Weaving Microelectronics into Everyday Yarn
Traditional graphical user interfaces rely on flat, rigid panels made of glass or silicon. Textiles, which are woven from one-dimensional fibers, have historically lacked this capability because a full-color, touch-sensitive display could not be threaded like yarn.
Assistant Professor Tural Khudiyev of the materials science and engineering department at the National University of Singapore’s College of Design and Engineering (CDE) explained the breakthrough in technical terms.
“What made this possible was our ability to construct the GUI system from electronic building blocks in fibre form—similar to traditional yarn, but with the sophisticated electronic functionality built directly into the fibers,” Khudiyev said.
The findings were published in the journal Nature. To achieve this, the team engineered a programmable method that establishes connection points along micro-thin insulated wires. A laser exposes these exact locations, while controlled surface wetting guides molten solder to bond exclusively at the programmed sites. This approach allowed the researchers to integrate more than 5,000 microchips through over 20,000 electrical connections inside a thread measuring just a millimeter thick and 10 meters long.
Performance Metrics of the Functional Sleeve Prototype

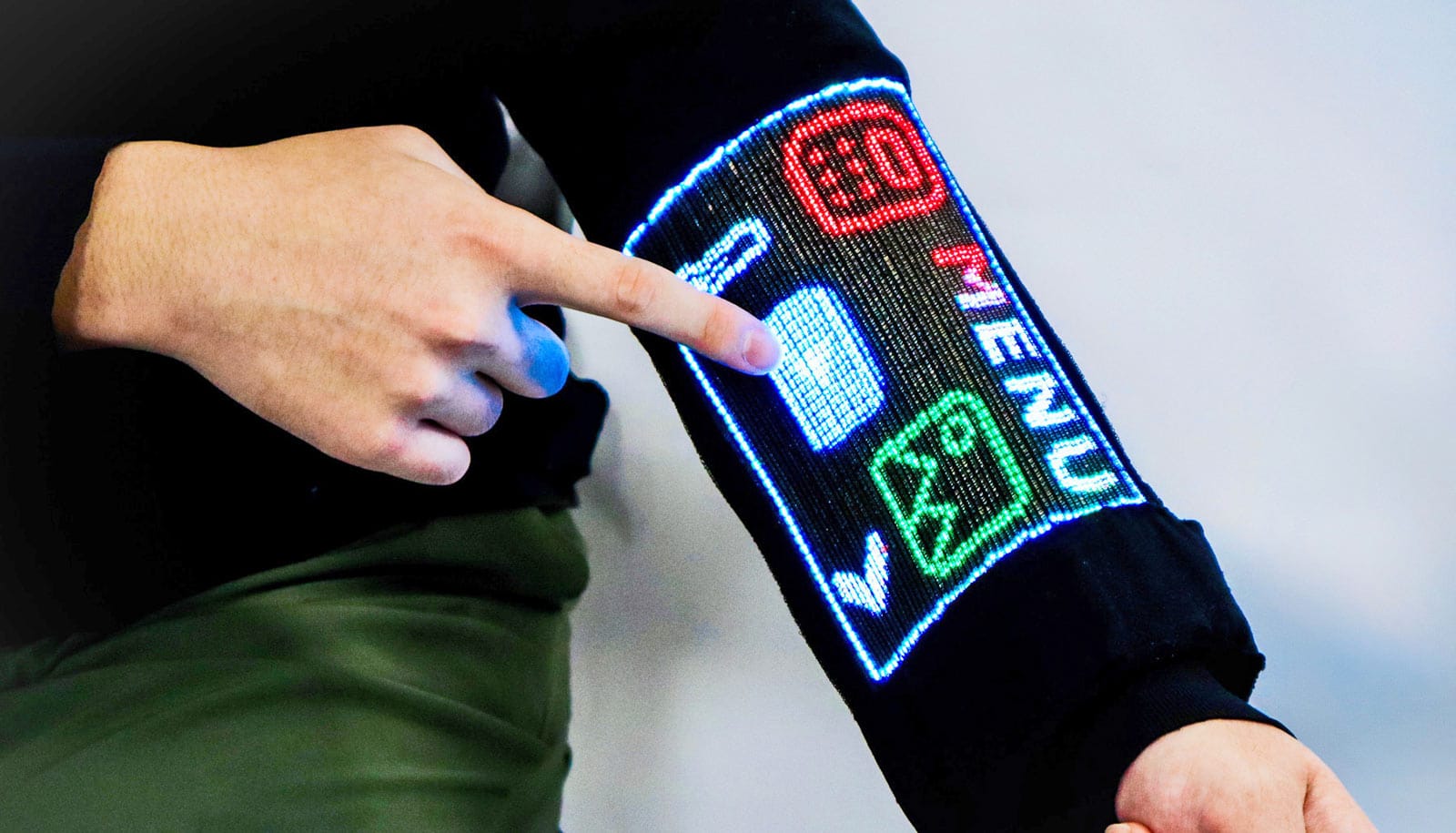

In the research team’s current prototype, 54 pixel fibers—each carrying 96 LEDs—were threaded into the forearm of a sleeve. This configuration forms a 96 by 54-pixel display measuring 168 millimeters by 105 millimeters, refreshing at 30 frames per second with 8-bit color depth.
Each individual fiber operates on its own control channel. If a fault develops in one line, its neighboring lines continue working normally, and the system can register multiple touch inputs simultaneously. Peripheral fibers woven alongside the pixels carry a microphone, a speaker, and sensors that track physical movement, detect magnetic north, measure temperature, and gauge environmental brightness.
| Parameter | Specification |
|---|---|
| Display Dimensions | 168 mm x 105 mm |
| Resolution | 96 x 54 pixels |
| Refresh Rate | 30 frames per second (video with audio at 25 fps) |
| Color Depth | 8-bit |
| Durability Testing | 50 detergent washes; 1,000 bends around a 5 mm radius |
These integrated capabilities allow the garment to run basic applications such as a calculator, photo gallery, video player, compass, and voice-command interface while receiving images over Bluetooth. Positioned under the arm, a dedicated temperature-sensing fiber reads and displays body temperature.
Fabric Resilience and Future Healthcare Integration
Crucially, the material retains the physical characteristics of standard apparel. Light output and touch response remained nearly unchanged after 50 detergent cycles in a standard washing machine and following 1,000 bends around a 5 mm radius. Furthermore, the textile remains as breathable as cotton, polyester, and denim while operating within established safety limits for skin contact.
Khudiyev noted that healthcare represents a promising application for future development.
“Health care is one particularly promising application,” Khudiyev said. “A garment could continuously collect physiological information through fibre-based sensors and allow the wearer to access and interact with that information directly through their clothing. Combined with artificial intelligence (AI), this could enable personalized health monitoring, feedback and assistance.”
Toward Artificial Intelligence Within Textiles
The research team is now working to advance the textile touchscreen toward higher resolution, integrated sensing, and on-device AI. By bringing display, touch, sensing, and intelligence together within the same textile platform, the technology moves past simple wearable screens toward smart garments capable of interpreting both the wearer and their immediate environment.
