In semiconductor manufacturing, precise temperature control is essential to prevent microscopic defects on silicon wafers. Tokyo Electron Ltd. (TEL) outlined the complex engineering behind thermal management, noting that even a 0.1°C variation across a wafer stage can alter circuit dimensions, etch depths, and overall product quality.
Precision fabrication relies on absolute numerical accuracy rather than human sensation. When manufacturing advanced microchips, heat distribution dictates the physical structure of the final product. Here is why that matters: if the temperature differs between the left and right sides of a wafer during processing, the resulting microscopic contact holes change shape and depth.
Furthermore, temperature fluctuations across dozens of identical machines lined up on a factory floor create systemic manufacturing defects. Tokyo Electron explained that equipment environments present unique physical barriers that traditional thermometers simply cannot handle.
Overcoming Vacuum and Plasma Barriers
Standard temperature measurement tools fail inside semiconductor equipment because production environments diverge radically from normal atmospheric conditions. Film deposition, etching, and ion implantation devices operate inside vacuums where air and gas are virtually absent.
To solve this, engineers drill a two-millimeter hole into internal components, insert a specialized sensor, and apply vacuum-compatible thermal grease. The grease acts as a heat bridge, allowing resistance thermometers to accurately read component temperatures.

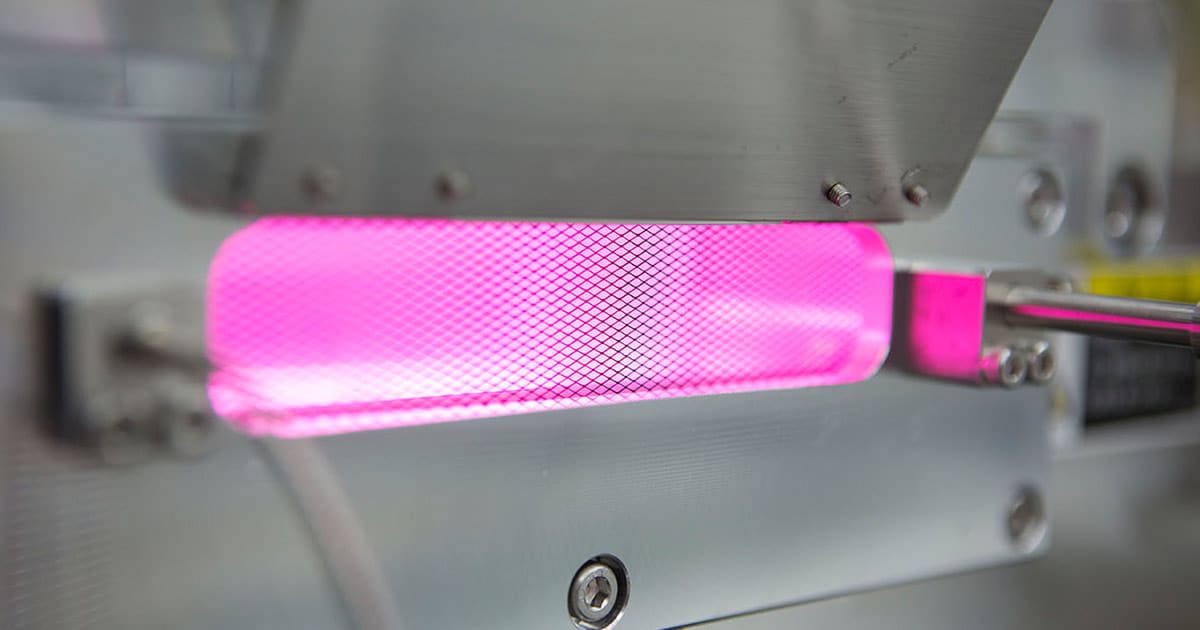

Plasma environments introduce an even harsher set of variables. Etching processes utilize high-energy plasma reaching tens of thousands of degrees Celsius, accompanied by intense electromagnetic noise. Contact thermometers cannot survive this environment without burning out or generating massive measurement errors. Consequently, manufacturers deploy non-contact infrared thermometers to monitor the underlying electrodes and chamber walls indirectly.
Mapping the Wafer Surface
Measuring the temperature of the wafer itself presents a distinct challenge because attaching physical sensors directly to the production surface interferes with fabrication. Tokyo Electron details two primary methods deployed to bypass this restriction:
- Infrared Radiation Monitoring: Optical systems measure the invisible thermal radiation emitted from the wafer from a distance, visualizing variations across the surface.
- Wafer-Type Sensors: Technicians place a specialized tool shaped identically to a standard silicon wafer—embedded with a surface thermocouple—into the manufacturing line to record exact thermal distributions.
| Environment | Primary Measurement Difficulty | Deployed Technology |
|---|---|---|
| Vacuum | Lack of air medium prevents normal heat conduction and convection. | Resistance thermometer (RTD) paired with vacuum-compatible thermal grease. |
| Plasma | Extreme heat and electromagnetic noise destroy contact sensors. | Non-contact infrared thermometers monitoring electrodes. |
| Wafer Surface | Physical sensors disrupt the manufacturing process. | Infrared radiation sensors and specialized wafer-type temperature tools. |
Monitoring these thermal metrics extends beyond immediate quality control. Much of the energy consumed in a semiconductor fabrication plant powers the cooling systems required to offset processing heat. By accurately measuring temperatures and predicting thermal spikes before they occur, equipment manufacturers can optimize cooling intensities and eliminate energy waste.
Accurate thermal measurement technologies, perfected within harsh vacuum and plasma chambers, now serve as foundational elements for next-generation microchip fabrication and corporate decarbonization initiatives.
