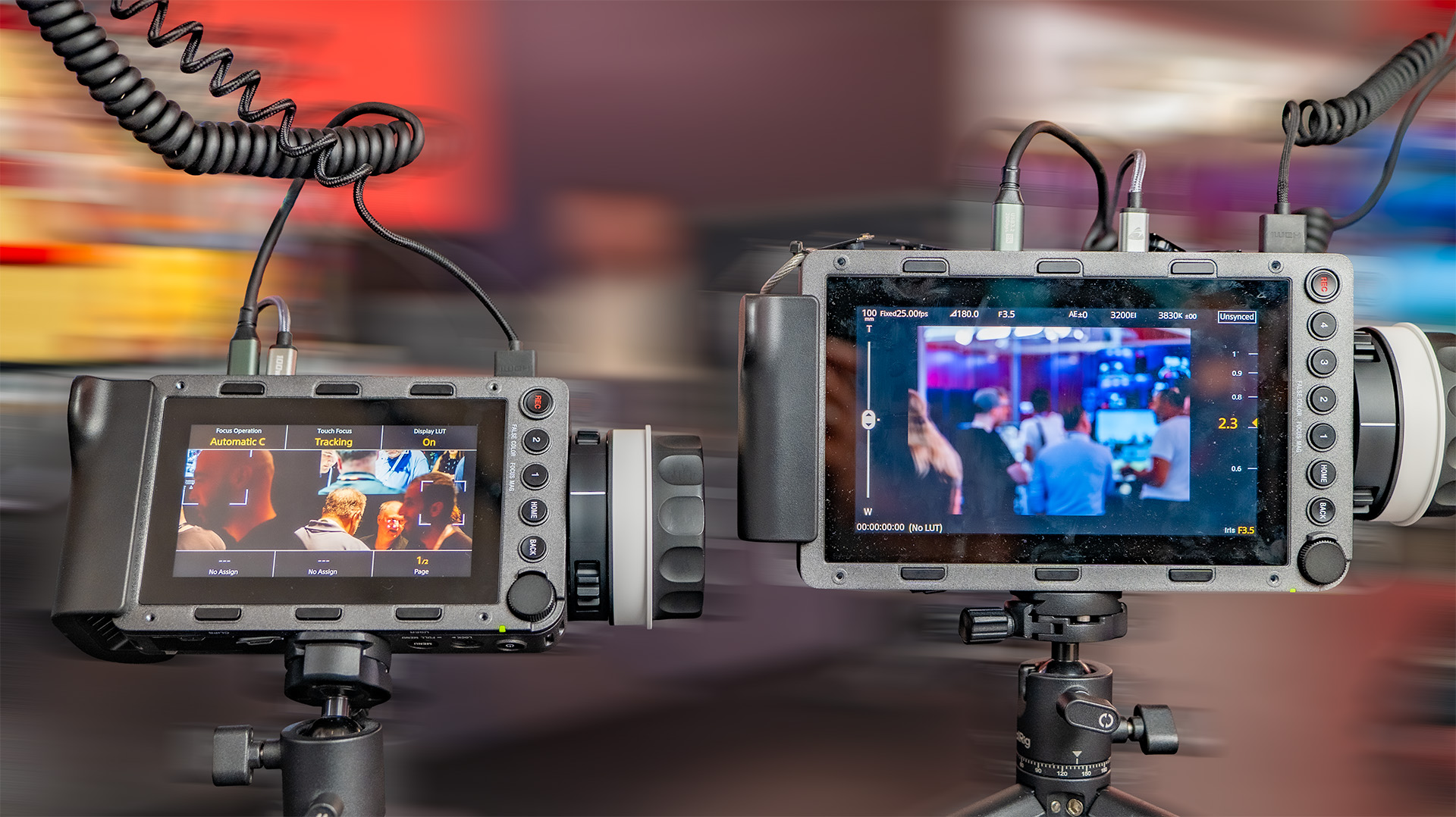

Unveiled at IBC 2026, the Sony RM-DP7 and RM-DP5 are 7-inch and 5-inch external monitors that double as hardware remote control surfaces for Cinema Line cameras including the FX30, FX2, FX3, and the new FX5, featuring individual factory color calibration and a 2,000-nit daylight-viewable panel.
The boundary between viewing a digital image and manipulating the iron capturing it is collapsing. At the IBC trade show floor in September 2026, Sony representatives clarified the operational mechanics of the newly announced RM-DP7 and RM-DP5 monitors. Built specifically for high-end fiction filmmaking, commercial production, and tight operational rigs, these displays merge critical monitoring with tactile hardware control. They are engineered to solve a very specific problem: maintaining precise color science and focus puller ergonomics when the camera body is completely out of reach.
Dual-Function Hardware Architecture and Cable Routing
Unlike standard external displays that merely ingest a video feed, the DP5 and DP7 operate as hybrid monitoring and control surfaces. According to Sony’s technical breakdowns from the 2026 showcase, operators can bypass traditional touchscreen camera menus entirely. The units utilize a proprietary user interface layer designed to bridge multiple generations of Cinema Line hardware, meaning a single monitor layout can interface seamlessly with an older FX3 or an advanced FX5 despite underlying firmware disparities.
Physical integration avoids proprietary connectors in favor of an open, modular approach. Video transmission runs independently via HDMI or SDI, while camera command and control signals travel over a dedicated USB-C interface or a 1000BASE-T Ethernet line. In practice, this requires a two-cable run from the monitor to the camera body.
- Sony DP5: Features a 5-inch form factor with HDMI-only connectivity, powered via USB-C or external battery. Priced at £2,100 / €2,500.
- Sony DP7: Features a 7-inch form factor with both SDI and HDMI connectivity, incorporating locking ports tailored for high-end production environments. Priced at £2,800 / €3,300.
Both models share an identical peak luminance of 2,000 nits. This means hardware selection is driven entirely by physical footprint, mounting constraints, and port requirements rather than outdoor daylight legibility differences. The physical chassis sports the signature silver aesthetic of Sony’s Cinema Line, built with top and bottom mounting points to accommodate dynamic rigging orientations.
Thermal Management and Factory Color Calibration
Pushing an LCD panel to 2,000 nits creates substantial thermal energy. In conventional field monitors, this heat quickly introduces thermal color drift, subtly shifting white points and gamma curves during long takes. Sony addresses this via internal diagnostic sensors that continuously monitor thermal fluctuations and dynamically adjust the panel output in real-time. At launch, the system does not expose manual user recalibration options to operators, though Sony is actively gathering field feedback on whether to add user-accessible calibration tools in future firmware iterations.
Color grading accuracy remains a core differentiator against software-based wireless control apps. Every single DP5 and DP7 unit undergoes individual color calibration at the factory to match professional grading expectations. When shooting in Log formats, the camera pushes the raw log signal directly to the monitor, where users can load up to 16 user LUTs imported locally via an SD card. Because the LUT library lives on the monitor rather than the camera, color management assets must be managed separately across devices.
The Wireless Strategy and Third-Party Ecosystem Bridges
A primary point of discussion following the initial 2026 announcement centered on the absence of built-in wireless transceivers. Sony deliberately omitted internal radio hardware to prevent form-factor bloat and avoid the rapid obsolescence cycles plaguing proprietary wireless standards. Latency requirements and regional frequency regulations vary widely across global film sets, pushing Sony to rely on modular, third-party transmission paths.
The hardware supports external wireless units capable of transmitting uncompressed video up to 4K resolution while simultaneously passing lens control data. Sony officially validates two distinct zero-delay wireless systems for production deployment:
- Hollyland Pyro Ultra: Recommended for mid-tier wireless video and control extension.
- Teradek Bolt 7: Recommended for high-end cinema workflows requiring ultra-low latency links.
This open technical standard means other wireless hardware manufacturers can theoretically engineer compatible control links, though Hollyland and Teradek represent the explicitly validated ecosystem partners at launch.
Lens control is natively integrated into the hardware workflow. Operators can manipulate focus on native E-mount glass equipped with electronic contacts, alongside zoom control for compatible power zoom lenses such as the FE PZ 28-135mm f/4 G OSS. Pressing the dedicated physical start button exposes the BIG6 overlay screen, granting immediate tactile access to primary exposure variables including iris, ISO, and white balance without diving through nested menu trees.
Firmware Roadmaps and Platform Limitations
Hardware constraints dictate certain operational boundaries. The system strictly operates on a one-monitor-per-camera architecture. Sony has confirmed that loop-through signal chaining is not in development, ruling out multi-monitor daisy-chaining from a single tethered line. Furthermore, initial release firmware limits native device support to the FX30, FX2, FX3, and FX5.
Owners of higher-end production bodies will have to wait. Sony has slated firmware updates to bring compatibility to the FX6 and BURANO during the second half of 2027. Meanwhile, legacy cinema platforms such as the FX9, VENICE, and VENICE 2 remain unconfirmed on the official roadmap, though product managers note that customer feedback channels remain open for future consideration.
Both models open for pre-order immediately following the IBC 2026 unveiling, with retail availability slated for early January 2027.
